SWD Narrow Slot PVC Wiring Duct

Materials: Eco-friendly rigid PVC, RoHS REACH CE compliant, lead free pvc, non-asbestos.

Flame retardancy: UL94 V-0, excellent self-extinguishing.

Working temperature: -20℃ ~ +65℃

Certification: CE. RoHS. Reach.

Color: Grey RAL 7004 - Slotted Finger Duct.

White, Blue, Black can be customized.

RETURN TO LIST

Product Features

1. Wiring duct includes base and cover, featuring easy and secure snap-on assembly, with smooth, burr-free surfaces that are safe to touch.

2. With symmetrically aligned slots, the wiring duct provides clean, smooth edges prevents wire insulation damage.

3. Available in a full range of sizes with diverse slot and mouting hole designs, for easy selection and wiring installation.

4. Pantent. The unique marking line design on wiring duct cover provides organized and tidy cable identification.

5. Pantent. The Unique cut-edge bottom design delivers flush cable alignment at joints, and allows for clean & quick cuts, perfect for efficient panel building.

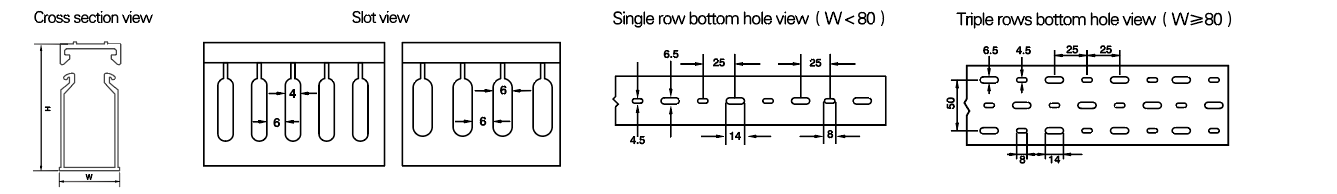

	Narrow Slot Wiring Duct
	Key Benefits
●	Features narrow and precise slots for neat and tidy cable management.
●	Prevents cables from slipping out accidentally during installation.
●	Maintains better trunking rigidity and structural stability.
●	Provides clean appearance with organized, compact routing.
●	Ideal for smaller diameter wires and precise control panel wiring.
